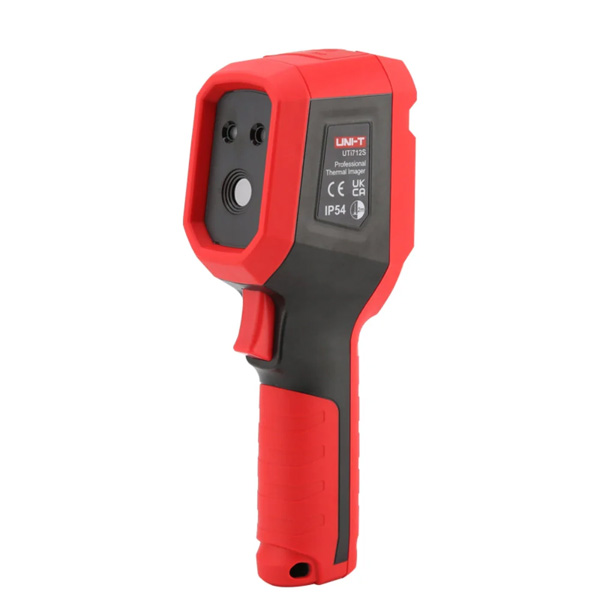

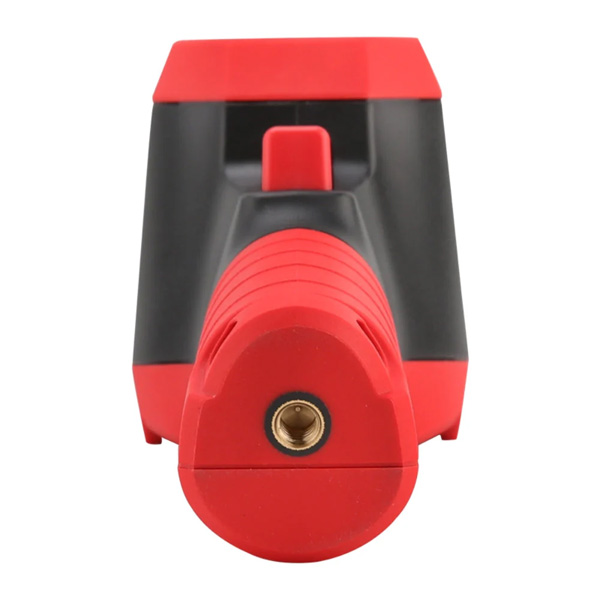

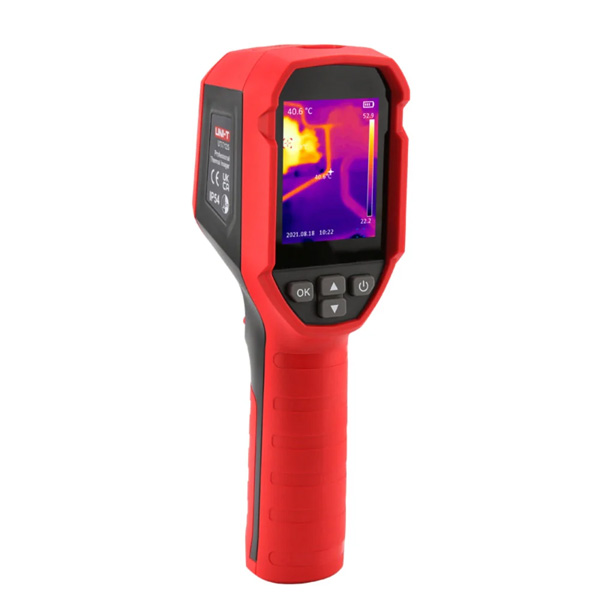

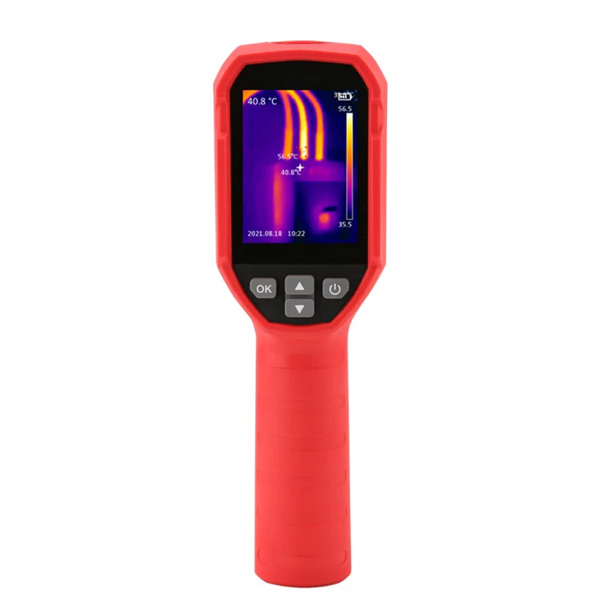

Thermal Camera, UNI-T UTi712S

The UNI-T UTi712S Thermal Camera is a compact and cost-effective infrared imaging device designed for fast and accurate temperature inspection in electrical maintenance, HVAC diagnostics, mechanical troubleshooting, and building inspections. Equipped with a 120 × 90 infrared detector and a temperature measurement range of -20°C to 400°C, it helps professionals quickly identify overheating components, insulation issues, and hidden faults.

Its high thermal sensitivity (NETD ≤60mK) detects subtle temperature differences for clear thermal images, while the 2.4-inch TFT LCD display provides easy viewing in the field. The focus-free design enables quick inspections without manual adjustment, and six color palettes allow users to optimize thermal visualization for different applications.

The UTi712S also features high/low temperature alarms with visual, audible, and LED notifications, a built-in laser pointer for accurate targeting, and an integrated LED work light for low-light environments. With an IP54-rated housing, 2-meter drop protection, and up to 8 hours of battery life, it is built for reliable daily use in demanding working conditions.

Key Features

• 120 × 90 infrared thermal resolution
• Wide temperature measurement range from -20°C to 400°C
• High thermal sensitivity (NETD ≤60mK)
• 2.4-inch TFT LCD color display
• Focus-free operation for fast inspections
• Six selectable color palettes for enhanced thermal analysis
• High and low temperature alarms with icon, buzzer, and LED indication
• Built-in laser pointer for precise targeting
• Integrated LED work light
• Stores thermal images on a 16GB Micro SD card
• PC software for image analysis
• Rugged IP54-rated housing with 2-meter drop protection
• Rechargeable lithium-ion battery with up to 8 hours of operation

Applications

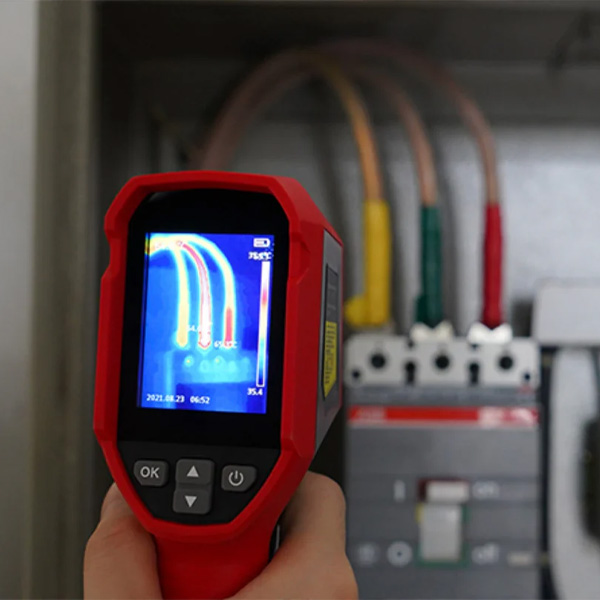

• Electrical inspections

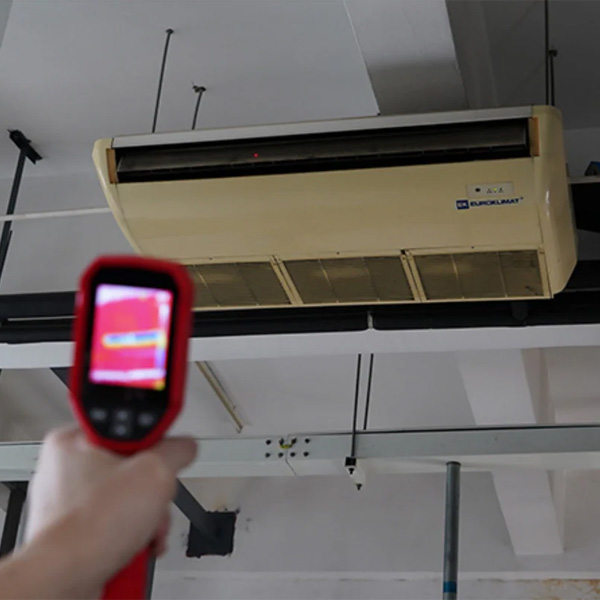

• HVAC system diagnostics

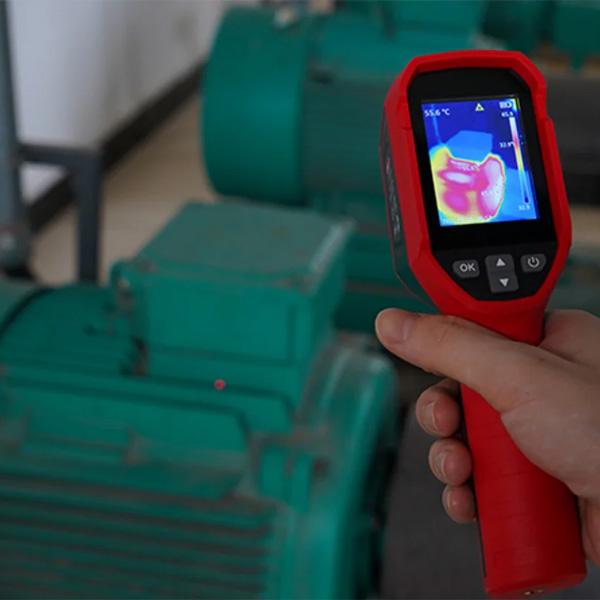

• Mechanical equipment maintenance

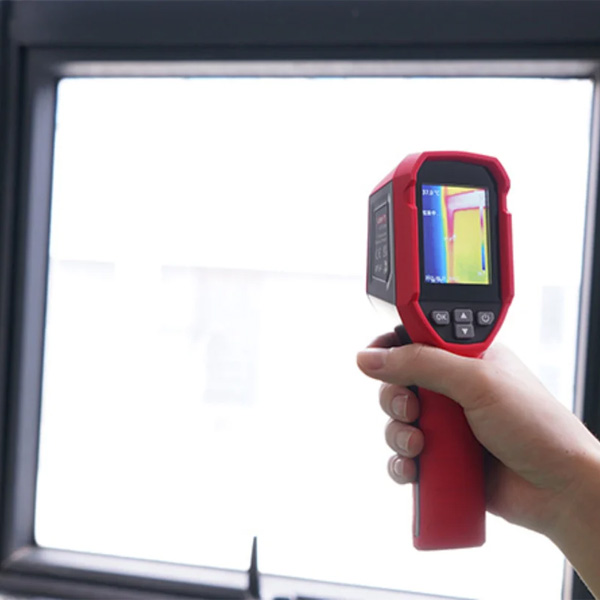

• Building inspections
• Preventive maintenance
• Industrial troubleshooting
• Energy efficiency assessments
• Plumbing leak detection

Package Includes

• 1 × UNI-T UTi712S Thermal Camera
• 1 × Hand Strap
• 1 × 16GB Micro SD Card
• 1 × Type-C USB Cable
• 1 × English User Manual
• 1 × Documentation Download Guide Card

Safety Information

• Do not expose the camera to temperatures beyond its specified operating limits.
• Avoid directing the laser pointer toward eyes.
• Keep the infrared lens clean for accurate measurements.
• Charge the battery using the supplied Type-C cable.
• Store the device in a dry environment when not in use.
