Helping Hand with Led Light, Yato YT-73861

30.00 $

- Series: GRD
- Magnification: 3x (for 75 mm lens), 45x (for 20 mm lens)

<li>Lenses diameter: 75, 20 mm

Focal length: 125 mm (for 75 mm lens), 71 mm (for 20 mm lens)
Material: ABS, steel
Lenses material: acrylic
Frame material: ABS
Base size: 125×160 mm
Operation angle: 360 ˚
Adjustable: yes
Work area lighting: yes
Light source: 10 LED
Type: COB LED
Switch: yes
Power supply: energy source, system
cell type: 3×1.5V; AAA
Charger type: USB
Weight: 390 g

SKU: YATO-YT-73861 Category: Other Tags: helping handle, led light, YATO Brand: YATO

The Yato YT-73861 features a third-hand type handle with a ring-shaped illumination powered by 10 LEDs. It includes a dual magnifier system: the larger lens, measuring 75 mm in diameter, provides 3x magnification. Meanwhile, the smaller built-in magnifier, with a 20 mm diameter, offers 4.5x magnification.

Moreover, the 360-degree swivel arm allows angle adjustment in three places. This flexibility enables you to work freely both inside and outside the auxiliary clip area. Additionally, two crocodile clips mounted on movable arms with double ball joints provide a wide range of adjustment options. Therefore, they fit both fine jewelry and small PCB sizes perfectly.

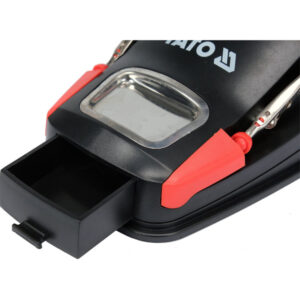

To help organize your workspace, the device also includes a soldering sponge stand, a flask slot, and a roll for mounting solder binder. Furthermore, a storage compartment (64 x 42 mm) is ideal for keeping disassembly screws and other small parts.

Made from durable ABS and steel, the base measures 125 x 160 mm. Power can be supplied either by 3x AAA batteries or via USB using the included cable, adding convenience to your work setup.
